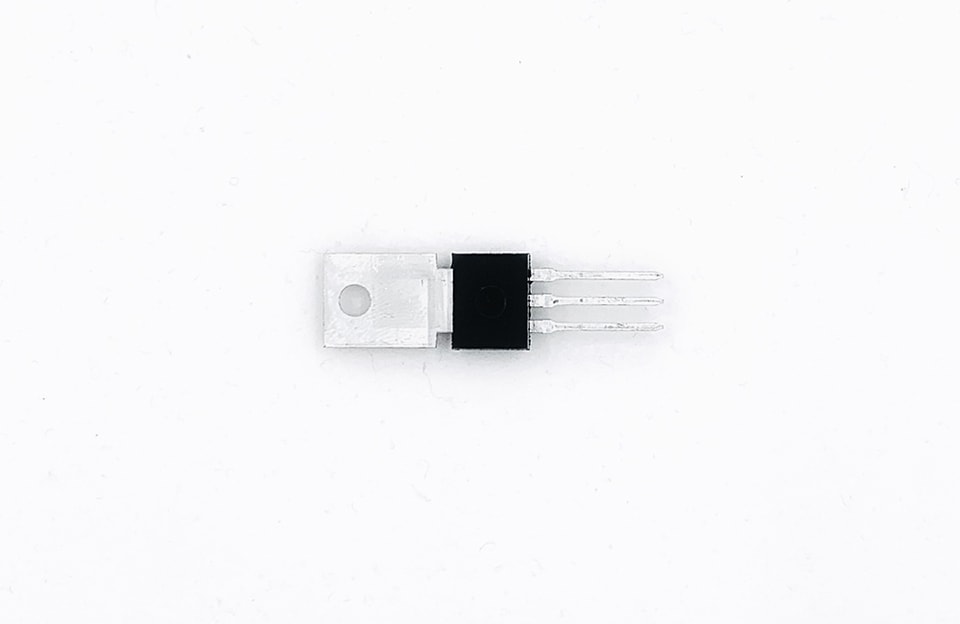

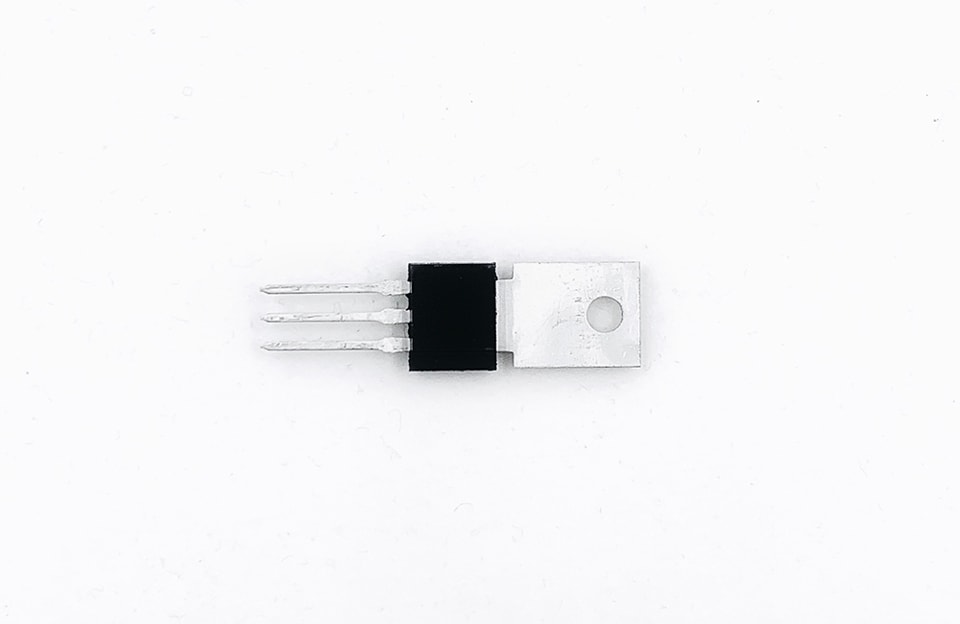

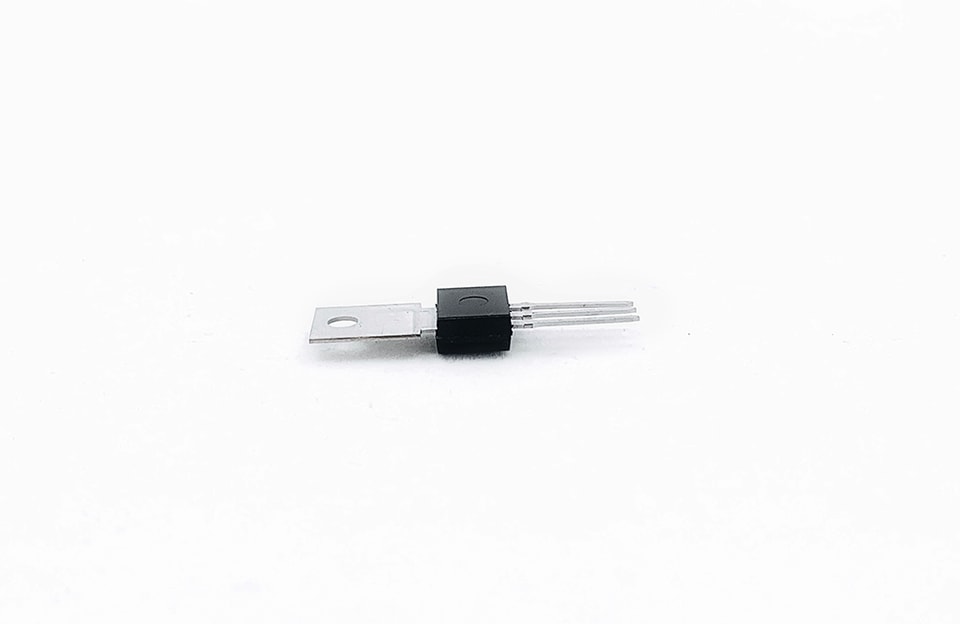

YZPST-X0405 (avec dissipateur thermique)
Astuce : indiquez la référence du composant, la tension/le courant cible ainsi que l’environnement d’utilisation.
Téléchargements et fichiers techniques
Grâce à ses niveaux d’amorçage très sensibles, la série X0405 SCR convient à toutes les applications où le courant de gâchette disponible est limité, telles que les disjoncteurs de défaut à la terre, la protection par crowbar contre les surtensions dans les alimentations de faible puissance et les circuits d’allumage capacitifs.
Symbole | Valeur | Unité |
IT(RMS) | 4.0 | A |
VDRM VRRM | 600 | V |
IGT | 200 | µA |
Paramètre | Symbole | Valeur | Unité |
Plage de température de jonction de stockage | Tstg | -40 ~150 | ℃ |
Plage de température de jonction de fonctionnement | Tj | -40~125 | ℃ |
Tension répétitive de blocage maximale à l’état passant (T =25℃) | VDRM | 600 | V |
Tension inverse de crête répétitive (T =25℃) | VRRM | 600 | V |
Tension de crête de blocage à l’état bloqué non répétitive de surtension | VDSM | VDRM +100 | V |
Tension inverse de crête non répétitive | VRSM | VRRM +100 | V |
Courant efficace à l’état passant (T =60℃) | IT(RMS) | 4.0 | A |
Courant de crête non répétitif de surtension à l’état passant (angle de conduction de 180°, F=50Hz) | ITSM | 30 | A |
Courant moyen à l’état passant (angle de conduction de 180°) | IT(AV) | 2.5 | A |
Valeur I²t pour la fusion (tp=10 ms) | I2t | 4.5 | A2S |
Taux critique d’élévation du courant à l’état passant (I =2×IGT, tr ≤ 100 ns) | dI/dt | 50 | A/μS |
Courant de crête de gâchette | IGM | 1.2 | A |
Dissipation moyenne de puissance de gâchette | PG(AV) | 0.2 | W |
Symbole | Conditions d’essai | Valeur | Unité | |
IGT | V =12V R =140Ω | MAX. | 200 | µA |
VGT | MAX. | 0.8 | V | |
VGD | VD=VDRM Tj=125℃ R=1KΩ | MIN. | 0.1 | V |
IL | IG=1.2IGT | MAX. | 6 | mA |
IH | IT=50mA | MAX. | 5 | mA |
dV/dt | VD=2/3VDRM Gâchette ouverte Tj=125℃ | MIN. | 15 | V/μs |
CARACTÉRISTIQUES STATIQUES
Symbole | Paramètre | Valeur (MAX.) | Unité | |
VTM | ITM =8,0 A tp=380μs | Tj =25℃ | 1.8 | V |
IDRM | VD=VDRM VR=VRRM | Tj =25℃ | 5 | μA |
IRRM | Tj =125℃ | 1 | mA | |
Résistances thermiques
| Symbole | Paramètre | Valeur (MAX.) | Unité |
Rth(j-a) | jonction à l’ambiante | 60 | ℃/W |
Rth(j-t) | Jonction vers languette (CC) | 20 |
Schéma d’information de commande
