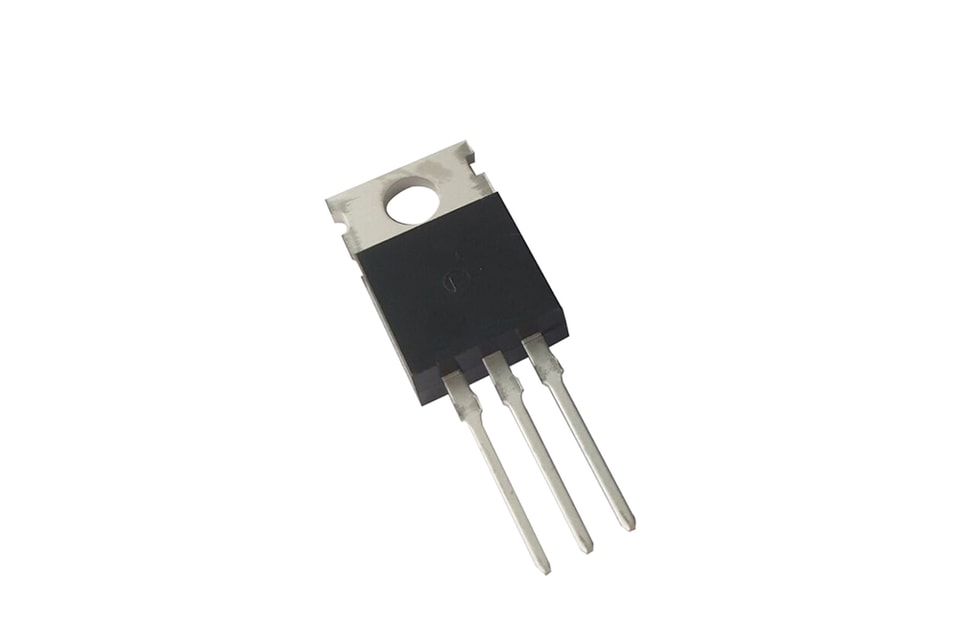

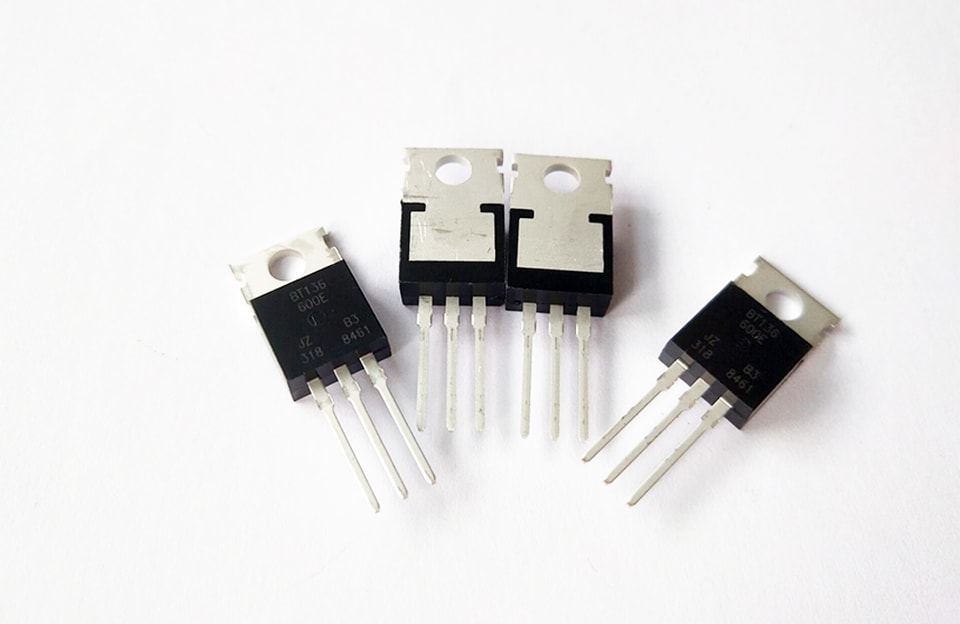

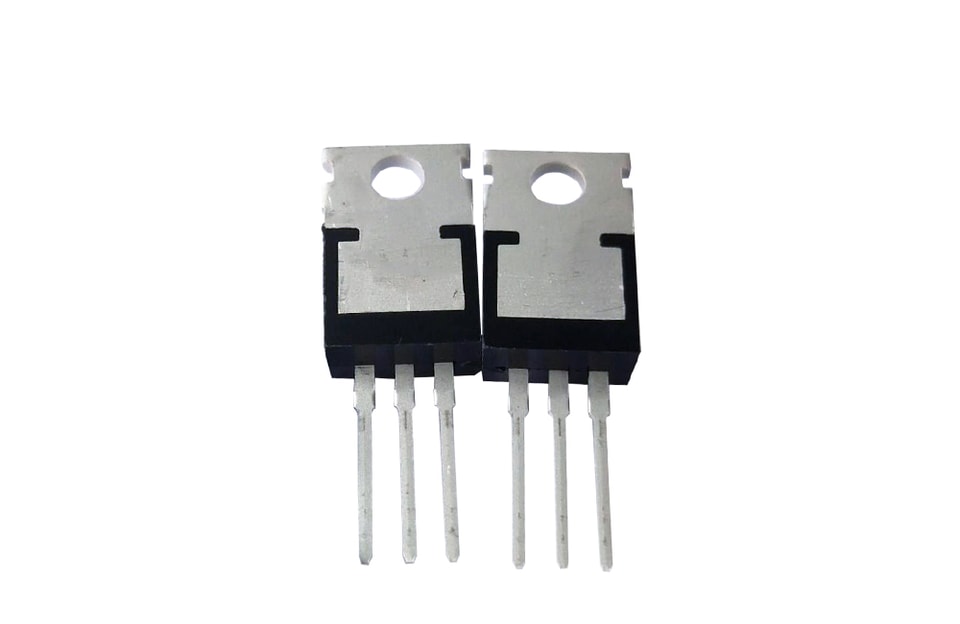

YZPST-S2535
Astuce : indiquez la référence du composant, la tension/le courant cible ainsi que l’environnement d’utilisation.
Téléchargements et fichiers techniques
Thyristors passivés au verre dans un boîtier en plastique, la série PSTS2535SCR convient à tous les modes de commande et trouve sa place dans des applications telles que la protection par écrêtage contre les surtensions, les circuits de commande de moteurs pour outils électriques et appareils de cuisine, les circuits de limitation du courant d’appel, l’allumage par décharge capacitive, la commande progressif du démarrage des moteurs AC et les circuits de régulation de tension…
Symbole | Valeur | Unité |
IT(EFF) | 40 | A |
VDRMVRRM | 1200 | V |
IGT | 35 | mA |
Paramètre | Symbole | Valeur | Unité |
Plage de température de jonction de stockage Plage de température de jonction de stockage | Tstg | -40 ~150 | ℃ |
Plage de température de jonction en service | Tj | -40~125 | ℃ |
Tension de blocage crête répétitive (T =25℃) | VDRM | 1200 | V |
Tension inverse crête répétitive (T =25℃) | VRRM | 1200 | V |
Tension d’état bloqué de crête de surtension non répétitive | VDSM | VDRM+100 | V |
Tension inverse crête non répétitive | VRSM | VRRM+100 | V |
Courant efficace en conduction (T =100℃) | IT(EFF) | 40 | A |
Courant de crête de surtension non répétitif à l’état passant | ITSM | 350 | A |
Courant moyen en conduction (angle de conduction de 180°) | IT(AV) | 25 | A |
I2Valeur t pour le pouvoir fusible (tp=10ms) | I2t | 450 | A2S |
Taux critique d’augmentation du courant à l’état passant (I =2×IGT,tr≤ 100 ns) | dI/dt | 150 | A/μS |
Courant de crête de gâchette | IGM | 4 | A |
Dissipation de puissance moyenne de grille | PG(AV) | 1 | W |
CARACTÉRISTIQUES ÉLECTRIQUES (T=25℃ sauf indication contraire)
Symbole | Condition d’essai |
| Valeur | Unité |
IGT | V =12V R =140Ω | MAX. | 35 | mA |
VGT | MAX. | 1.3 | V | |
VGD | VD=VDRMTj=125℃ R=1KΩ | MIN. | 0.2 | V |
IL | IG=1.2IGT | MAX. | 75 | mA |
IH | IT = 50 mA | MAX. | 50 | mA |
dV/dt | VD=2/3VDRMGate ouvert Tj=125℃ | MIN. | 500 | V/μs |
YZPST peut fournir la liste des équivalents suivante pour SCR et triac.
2P4M | BT2588 | Q6006 | SCF6C60 | TS820 |
2P6M | BY169 | Q8006 | S6012 | TS420 |
25TTS16 | BT169 | Q6008 | S8012 | TYN612 |
40TPS16 | BT151S | Q8008 | S8016 | TYN616 |
70TPS16 | BT148W | Q6010 | SCF25C60 | TYN816 |
| BT148S | Q8010 | S6025 | TYN620 |
CR08AS | BT151 | Q6016 | S8025 | TYN820 |
C106 | BT152 | Q8016 | SK025 | TYN1025 |
CS30 | BTW69 | Q6025 | S6035 | TYN1225 |
CS45 | BT131 | Q8025 | S8035 | TYN630 |
CS60-16i01 | BT134 | QK025 | SK035 | TYN830 |
| BT136 | Q6040 | S6040 | TYN640 |
MCR100-6 | BCR2PM | Q8040 | S8040 | TYN840 |
MCR100-8 | BTA01 | QK040 | S6055 | T405 |
MCR706 | BTB04 |
| S8055 | T410 |
MCR72-6/8 | BTA06 |
| SK055 | T435 |
MCR22 | BTB06 |
| STN1A60 | T805 |
MAC97A6 | BTA08 |
| STN1A80 | T810 |
MAC97A8 | BTB08 |
| STF4A60 | T835 |
| BT137 |
| STF6A60 | TMG8C60 |
FS0102MA | BTA10 |
| STF08 | TMF12C60 |
| BTB10 |
| STF12A60 | T1235 |
X0405 | BTA16 |
|
| TMG16C60 |
X0805 | BTB16 |
|
| TIC246 |
X0205 | BT139 |
|
| T1620 |
| BTA216 |
|
| T1635 |
Z00607 | BTA20 |
|
| TMG20C60 |
Z0103 | BTB20 |
|
| T2535 |
Z0107 | BTA24 |
|
| TMG25CQ60 |
Z0405 | BTB24 |
|
|
|
Z0409 | BTA140 |
|
|
|
| BTA26 |
|
|
|
| BTB26 |
|
|
|
| BTA41 |
|
|
|
| BTB41 |
|
|
TN1215-600H | T835-600G | T1235H6G | Z00607MN |
TN1215T-600B | T810T-61 | T1250H6G | Z00607MA |
TN1215-600B | T835T-61 | T1235H6I | Z0103MN |
TYN612MFP | T830-600W | T1250H6I | Z0107MN |
TN1215-800H | TXDV608 | T1235H6T | Z0109MN |
TN1215-800B | T810-800H | T1250H6T | Z0103MA |
TYN812 | T835-800H | T1235T-8T | Z0107MA |
TYN610 | T810-800B | T1235T-8FP | Z0109MA |
TYN810 | T835-800B | T1635H6G | Z0405MF |
TYN612T | T810-800G | T1650H6G | Z0409MF |
TYN612M | T835-800G | T1635H6I | Z0410MF |
TN1215-600G | T830-800W | T1650H6I | Z0405NF |
TN1215-800G | T830-8FP | T1635H6T | Z0409NF |
TN1625-600G | TXDV808 | T1650H6T | Z0410NF |
TN1625-800G | T1210-600G | T1625T-8I |
|
TN2540-600G | T1235-600G | T1635T-8I | ACS102-6TA |
TXN625 | T1250-600G | T1635T-8T | ACS108-6SN |
TYN625 | T1210T-6I | T1635T-8FP | ACS110-7SN |
TN2540-800G | T1235T-6I | T2035H6G | ACS108-6SA |
TXN825 | TXDC612 | T2050H6G | ACST210-8B |
TYN825 | T1210-800G | T2035H6I | ACST210-8FP |
TYN1225 | T1235-800G | T2050H6I | ACST410-8B |
TYN640 | T1250-800G | T2035H6T | ACST310-8B |
TYN840 | T1610-600G | T2050H6T | ACST435-8B |
T405-600H | T1635-600G | T3035H6I | ACST410-8FP |
T410-600H | T1610T-6I | T3050H6I | ACST310-8FP |
T435-600H | T1635T-6I | T3035H6T | ACST435-8FP |
T405-600B | T1620-600W | T3050H6T | ACST830-8T |
T410-600B | T1630-600W |
| ACST830-8FP |
T435-600B | T1610-800G | TYN16-600CT | ACST1010-7T |
T405-600T | T1635-800G | TYN16-600RT | ACST1035-7T |
T410-600T | T1620-800W | TYN16X-600CT | ACST1010-7FP |
T435-600T | T1630-800W | TYN16X-600RT | ACST1035-7FP |
T405-600W | T2535-600G | TYN16-800RT | ACST1210-7T |
T410-600W | T2535-800G | TYN16X-800RT | ACST1235-7T |
T435-600W | T2550-12G | TYN20X-T | ACST163S-8FP |
T435T-600FP | T2550-12T |
|
|
T405-800H | T405Q-600H | MAC97A6 | ACT108W-600D |
T410-800H | T405Q-600B | MAC97A8 | ACT108-600D |
T435-800H | T635T-8T | MAC223A8X | ACT108W-600E |
T405-800B | T635T-8FP | MAC223A6 | ACTT2S-800E |
T410-800B | T835H6G |
| ACTT2X-800E |
T435-800B | T850H6G |
| ACTT4S-800E |
T405-800T | T835H6T |
| ACTT4S-800C |
T410-800T | T835H6I |
| ACTT8B-800C0 |
T435-800T | T850H6I |
| ACTT8-800C0 |
T405-800W | T835T-8T |
| ACTT8X-800C0 |
T410-800W | T850H6T |
| ACTT10-800C |
T435-800W | T835T-8FP |
| ACTT10X-800C |
T810-600H |
|
| ACTT12B-800C |
T835-600H |
|
| ACTT12-800C |
T810-600B |
|
| ACTT12X-800C |
T835-600B |
|
| ACT108-600E |
T810-600G |
|
|
BT151U-650C | BTA204X-800E | BTA212-600B | BTA216-600BT |
BT151U-500C | BTA204X-800C | BTA312-600B | BTA316-600B |
BT151S-650R | BTA204X-800B | BTA212X-600D | BTA316-600B0 |
BT151S-500R | BTA206-800ET | BTA312X-600D | BTA216X-600E |
BT151B-650R | BTA206-800CT | BTA212X-600E | BTA316X-600E |
BT151-650R/L | BTA206X-800ET | BTA312X-600E | BTA216X-600F |
BT151-500R/L | BTA206X-800CT | BTA212X-600F | BTA316X-600C |
BT151-650C | BTA208S-600D | BTA312X-600C | BTA216X-600B |
BT151X-500R | BTA208S-600E | BTA212X-600B | BTA316X-600B |
BT151X-650R | BTA208S-600F | BTA312X-600B | BTA316B-800E |
BT151U-800C | BTA208S-600B | BTA212B-800D | BTA316B-800C |
BT151S-800R | BTA208B-1000C | BTA212B-800E | BTA216B-800B |
BT151B-800R | BTA208-600D | BTA312B-800E | BTA316B-800B |
BT151-800R | BTA208-600E | BTA212B-800F | BTA416Y-800C |
BT151X-800R | BTA208-600F | BTA312B-800C | BTA416Y-800B |
BT152-600R | BTA208-600B | BTA212B-800B | BTA316-800E |
BT152-400R | BTA208X-600D | BTA312B-800B | BTA316-800C |
BT152-500RT | BTA208X-600E | BTA312Y-800C | BTA216-800B |
BT152X-600R | BTA208X-600F | BTA412Y-800B | BTA316-800B |
BT152-800R | BTA208X-600B | BTA412Y-800C | BTA316X-800E |
BT152X-800R | BTA208S-800E | BTA212-800D | BTA316X-800C |
BT145-800R | BTA208S-800F | BTA212-800E | BTA216X-800B |
BT155K-1200T | BTA208S-800B | BTA312-800E | BTA316X-800B |
BTA204W-600D | BTA208-800D | BTA212-800F | BTA420Y-800CT |
BTA204W-600E | BTA208-800E | BTA312-800C | BTA420Y-800BT |
BTA204W-600C | BTA208-800C | BTA212-800B | BTA420-800CT |
BTA204W-600B | BTA208-800B | BTA312-800B | BTA420-800BT |
BTA204W-800D | BTA208X-800E | BTA212X-800D | BTA420X-800CT |
BTA201W-800E | BTA208X-800C | BTA212X-800E | BTA420X-800BT |
BTA201W-800C | BTA308X-800C | BTA312X-800E | BTA225B-600B |
BTA201W-800B | BTA208X-800B | BTA212X-800F | BTA225-600B |
BTA204S-600D | BTA308X-800B | BTA312X-800C | BTA225B-800B |
BTA204S-600E | BTA212B-600D | BTA212X-800B | BTA425Y-800CT |
BTA204S-600C | BTA312B-600D | BTA312X-800B | BTA425Y-800BT |
BTA204S-600B | BTA212B-600E | BTA216B-600D | BTA225-800C |
BTA204-600D | BTA312B-600E | BTA216B-600E | BTA225-800B |
BTA204-600E | BTA212B-600F | BTA316B-600E | BTA425X-800BT |
BTA204-600C | BTA312B-600C | BTA216B-600F | BT1308W-400D |
BTA204-600B | BTA212B-600B | BTA316B-600C | BT1308W-600D |
BTA204X-600D | BTA312B-600B | BTA216B-600B | BT131W-600 |
BTA204X-600E | BTA312Y-600C | BTA316B-600B | BT131W-600D |
BTA204X-600C | BTA412Y-600C | BTA416Y-600C | BT134-600E |
BTA204X-600B | BTA412Y-600B | BTA416Y600B | BT134-800D |
BTA204S-800E | BTA212-600D | BTA216-600D | BT134-800E |
BTA204S-800C | BTA312-600D | BTA316-600D | BT134-800 |
BTA204S-800B | BTA212-600E | BTA216-600E | BT136S-600D |
BTA204-800E | BTA312-600E | BTA316-600E | BT136S-600E |
BTA204-800C | BTA212-600F | BTA216-600F | BT136S-600F |
BTA204-800B | BTA312-600C | BTA316-600C | BT136B-600E |
BT234-600D | BTA08-600TW | BTA20-600CW | BTA16-600C |
BT136-600D | BTA08-600SW | BTA20-600BW | BTA16-600B |
BT234-600E | BTA08-600CW | BTB20-600CW | BTB16-600C |
BT136-600E | BTA08-600BW | BTB20-600BW | BTB16-600B |
BT136-600F | BTB08-600TW | BTA20-800CW | BTA16-800C |
BT234X-600D | BTB08-600SW | BTA20-800BW | BTA16-800B |
BT136X-600D | BTB08-600CW | BTB20-800CW | BTB16-800C |
BT136X-600E | BTB08-600BW | BTB20-800BW | BTB16-800B |
BT136X-600F | BTA08-800TW | BTA24-600CW | BTA24-600B |
BT136S-800D | BTA08-800SW | BTA24-600BW | BTB24-600B |
BT136S-800E | BTA08-800CW | BTB24-600CW | BTA24-800B |
BT136B-800E | BTA08-800BW | BTB24-600BW | BTB24-800B |
BT234-800D | BTB08-800TW | BTA24-800CW | BTA25-600B |
BT136-800D | BTB08-800SW | BTA24-800BW | BTA25-800B |
BT234-800E | BTB08-800CW | BTB24-800CW | BTA41-600B |
BT136-800E | BTB08-800BW | BTB24-800BW | BTA40-600B |
BT234X-800D | BTA12-600TW | BTA25-600CW | BTA41-800B |
BT136X-800D | BTA12-600SW | BTA25-600BW | BTA40-800B |
BT234X-800E | BTA12-600CW | BTA25-800CW |
|
BT136X-800E | BTA12-600BW | BTA25-800BW | BT137S-600D |
BT236X-600F | BTB12-600TW | BTA26-600CW | BT137S-600E |
BT236X-600G | BTB12-600SW | BTA26-600BW | BT137S-600F |
BT236X-800F | BTB12-600CW | BTA26-800CW | BT137-600E |
BT236X-800G | BTB12-600BW | BTA26-800BW | BT137B-600E |
BTW69-600 | BTA12-800TW | BTB04-600SL | BT137B-600F |
BTW67-600 | BTA12-800SW | BTA06-600C | BT137-600D |
BTW69-800 | BTA12-800CW | BTA06-600B | BT137-600F |
BTW67-800 | BTA12-800BW | BTB06-600C | BT137X-600D |
BTW69-1200 | BTB12-800TW | BTB06-600B | BT137X-600E |
BTW69-1200N | BTB12-800SW | BTA06-800C | BT137X-600F |
BTW67-1200 | BTB12-800CW | BTA06-800B | BT138B-600D |
BTA06-600TW | BTB12-800BW | BTB06-800C | BT138B-600E |
BTA06-600SW | BTA16-600TW | BTB06-800B | BT138B-600F |
BTA06-600CW | BTA16-600SW | BTA08-600C | BT138Y-600E |
BTA06T-600CW | BTA16-600CW | BTA08-600B | BT138-600D |
BTA06-600BW | BTA16-600BW | BT808-600C | BT138-600E |
BTB06-600TW | BTB16-600TW | BTB08-600B | BT138-600F |
BTB06-600SW | BTB16-600SW | BTA08-800C | BT138X-600D |
BTB06-600CW | BTB16-600CW | BTA08-800B | BT138X-600E |
BTB06-600BW | BTB16-600BW | BTB08-800C | BT138X-600F |
BTA06-800TW | BTA16-800TW | BTB08-800B | BT138-800D |
BTA06-800SW | BTA16-800SW | BTA12-600C | BT138-800E |
BTA06-800CW | BTA16-800CW | BTA12-600B | BT138-800F |
BTA06-800BW | BTA16-800BW | BTB12-600C | BT138B-800E |
BTB06-800TW | BTB16-800TW | BTB12-600B | BT138B-800 |
BTB06-800SW | BTB16-800SW | BTA12-800C | BT138Y-800E |
BTB06-800CW | BTB16-800CW | BTA12-800B | BT138-800 |
BTB06-800BW | BTB16-800BW | BTB12-800C | BT138X-800E |
|
| BTB12-800B | BT138X-800 |
BT138X-800F | BT139B-800 | BTA410X-600CT | BTA412Y-800BT |
BT139B-600D | BT139-800D | BTA410X-600BT | BTA412Y-800CT |
BT139B-600E | BT139-800E | BTA410Y-800CT | BTA312-800CT |
BT139B-600F | BT139-800 | BTA410Y-800BT | BTA416Y-600CT |
BT139-600D | BT139X-800D | BTA410-800CT | BTA416Y-600BT |
BT139-600E | BTA140-600 | BTA410-800BT | BTA316-600BT |
BT139-600F | BTA140-600G0 | BTA410X-800CT | BTA416Y-800CT |
BT139X-600D | BTA140-800 | BTA410X-800BT | BTA416Y-800BT |
BT139X-600E | BTA410Y-600CT | BTA312B-600CT | BTA201-800ER |
BT139X-600F | BTA410Y-600BT | BTA412Y-600BT | BTA208X-1000CO |
BT139B-800D | BTA410-600CT | BTA412Y-600CT | BTA308X-1000CO |
BT139B-800E | BTA410-600BT | BTA312-600CT | BTA216Y-800B |
BT139B-800F |
|
|
TO-92 |
TO-251(IPAK) |
TO-252(DPAK) |
TO-220 |
TO-220F |
TO-P3 |
TO-247 |
TO-126(SOT-82) |
TO-223 |
TO-202 |
SOT-23 |
SOT-89 |
TO-263(D2PAK) |
| CODE | DISPOSITIF | ITRMS (A) | IT AV (A) | VD RMS (V) | dv/dt (V/μS) | TQ (μS) | IG (mA) | BOÎTIER | MARQUE | FIG. |
| ECG5400 | THYRISTOR | 0.8 | 0.5 | 30 | 30 | - | 0.2 | TO-92 | PACE | A |
| 2N5061 | THYRISTOR | 0.8 | 0.51 | 60 | 30 | 10 | 0.2 | T0-92 | MOTOROLA | A |
| 2N5062 | THYRISTOR | 0.8 | 0.51 | 100 | 25 | 60 | 0.2 | TO-92 | MOTOROLA | A |
| MCR100-8 | THYRISTOR | 0.8 | 0.51 | 600 | - | - | 0.2 | TO-92 | STM | A |
| MCR22-6 | THYRISTOR | 1.5 | 0.95 | 400 | 25 | - | 0.2 | TO-92 | TECCOR | B |
| S4003M | THYRISTOR | 3 | 1.9 | 400 | 10 | 35 | 10 | TO-5 | TECCOR | C |
| IR106B | THYRISTOR | 4 | 2.5 | 200 | 8 | 100 | 200 | TO-202 | Redresseur interne | E |
| TIC106D | THYRISTOR | 5 | 3.2 | 400 | 10 | 7.7 | 0.2 | TO-220 | TEXAS | E |
| TIC106M | THYRISTOR | 5 | 3.2 | 600 | 10 | 7.7 | 0.2 | TO-220 | TEXAS | E |
| TIC116D | THYRISTOR | 8 | 5 | 400 | 100 | 11 | 20 | TO-220 | TEXAS | E |
| S6008L # | THYRISTOR | 8 | 5.1 | 600 | 160 | 35 | 15 | TO-220 | TECCOR | E |
| TIC116M | THYRISTOR | 8 | 5 | 600 | 100 | 11 | 20 | TO-220 | TEXAS | E |
| TIC126D | THYRISTOR | 12 | 7.5 | 400 | 100 | 11 | 20 | TO-220 | TEXAS | E |
| BT151-500R | THYRISTOR | 12 | 7.5 | 500 | 130 | 70 | 2 | TO-220 | PHILIPS | E |
| TIC126M | THYRISTOR | 12 | 7.5 | 600 | 100 | 11 | 20 | TO-220 | TEXAS | E |
| BT151-800R | THYRISTOR | 12 | 7.5 | 800 | 130 | 70 | 2 | TO-220 | NXP | E |
| TYN616 | THYRISTOR | 16 | 10 | 600 | 50 | 50 | 25 | TO-220 | STM | E |
| MCR16N | THYRISTOR | 16 | 10 | 800 | 200 | - | 10 | TO-220 | ON SEMI | E |
| S6020L # | THYRISTOR | 20 | 12.8 | 600 | 200 | 35 | 30 | TO-220 | TECCOR | E |
| TXN692 # | THYRISTOR | 20 | 13 | 800 | 500 | - | 25 | TO-220 | STM | E |
| BT152-800R | THYRISTOR | 20 | 13 | 800 | 300 | - | 32 | TO-220 | NXP | E |
| MCR25D | THYRISTOR | 25 | 16 | 400 | 250 | - | 12 | TO-220 | ON SEMI | E |
| S8025R | THYRISTOR | 25 | 16 | 800 | 200 | 35 | 30 | TO-220 | TECCOR | E |
| 2N692 | THYRISTOR | 25 | 16 | 800 | - | - | 40 | TO-48 | MOTOROLA | G |
| K16RIA120 * | THYRISTOR | 25 | 16 | 1200 | 500 | 20 | 100 | TO-48 | JEENDA | G |
| BTW68-800 # | THYRISTOR | 30 | 19 | 800 | 500 | 100 | 50 | TO-3P | STM | W |
| BTW68-1200 # | THYRISTOR | 30 | 19 | 1200 | 500 | 100 | 50 | TO-3P | STM | W |
| 16RIA60 | THYRISTOR | 35 | 16 | 600 | 100 | 110 | 60 | TO-48 | Redresseur interne | G |
| 16RIA120 | THYRISTOR | 35 | 16 | 1200 | 100 | 110 | 60 | TO-48 | Redresseur interne | E |
| S8040R | THYRISTOR | 40 | 25 | 800 | 500 | 35 | 40 | TO-220 | TECCOR | G |
| 25RIA8OM | THYRISTOR | 40 | 25 | 800 | 100 | 110 | 40 | TO-48(M6) | Redresseur interne | E |
| 40TTS12 | THYRISTOR | 40 | 25 | 1200 | 500 | 110 | 35 | TO-220 | Redresseur interne | G |
| 25RIA120 | THYRISTOR | 40 | 25 | 1200 | 100 | 110 | 40 | TO-48 | Redresseur interne | W |
| BTW69-600 # | THYRISTOR | 50 | 32 | 600 | 1000 | - | 50 | TO-3P | STM | W |
| CYNA56 1000 # | THYRISTOR | 50 | 32 | 1000 | 1000 | - | 50 | TO-3P | C3 SEMI | W |
| BTW69-1200 # | THYRISTOR | 50 | 32 | 1200 | 1000 | - | 50 | TO-3P | STM | W |
| S8055M | THYRISTOR | 55 | 35 | 800 | 500 | 35 | 40 | TO-3P | TECCOR | W |
| 40TPS12A | THYRISTOR | 55 | 35 | 1200 | 1000 | - | 150 | TO-247AC | Redresseur interne | W |
| S4070WTP | THYRISTOR | 70 | 45 | 400 | 650 | 35 | 50 | TO-218X | LITTELFUSE | S |
| S8070W | THYRISTOR | 70 | 45 | 800 | 500 | 35 | 50 | TO-218X | LITTELFUSE | S |
| CYNA71-1000 # | THYRISTOR | 70 | 50 | 1000 | 1000 | - | 60 | TO-3P | C3 SEMI | W |
| 70TPS12 | THYRISTOR | 75 | 70 | 1200 | 500 | - | 100 | SUPER TO-247 | Redresseur interne | W |
| 70TPS16 | THYRISTOR | 75 | 70 | 1600 | 500 | - | 100 | SUPER TO-247 | Redresseur interne | W |
| 50RIA60 | THYRISTOR | 80 | 50 | 600 | 200 | 110 | 100 | TO-65 | I.R./S.ST. | H |
| 50RIA8OM | THYRISTOR | 80 | 50 | 800 | 200 | 110 | 100 | TO-65 (M6) | RECT. INT., | H |
| 50RIA120 | THYRISTOR | 80 | 50 | 1200 | 200 | 110 | 100 | T0-65 | Redresseur interne | H |
| K50RIA120* | THYRISTOR | 80 | 50 | 1200 | 800 | 20 | 100 | TO-65 | JEENDA | H |
| 80RIA120 | THYRISTOR | 125 | 80 | 1200 | 500 | 110 | 120 | TO-94 | Redresseur interne | K |
| S15CG6B0 | THYRISTOR | 140 | 90 | 600 | 700 | 70 | 150 | TO-94 | Redresseur interne | K |
| T90RIA120 | THYRISTOR | 140 | 90 | 1200 | 500 | 110 | 120 | T-M3 | Redresseur interne | J |
| ST110S12POV | THYRISTOR | 175 | 110 | 1200 | 500 | - | 150 | TO-94 | Redresseur interne | K |
| ST110S16PO | THYRISTOR | 175 | 110 | 1600 | 500 | - | 150 | TO-94 | Redresseur interne | K |
| ST173512PFPO * | THYRISTOR | 275 | 175 | 1200 | 500 | 25 | 200 | TO-93 | Redresseur interne | L |
| ST173512PFKO * | THYRISTOR | 275 | 175 | 1200 | 200 | 20 | 200 | TO-93 | Redresseur interne | L |
| ST180S12POV | THYRISTOR | 314 | 200 | 1200 | 500 | 100 | 150 | TO-93 | Redresseur interne | L |
| ST180516PO | THYRISTOR | 314 | 200 | 1600 | 1000 | - | 150 | TO-93 | Redresseur interne | L |
| ST230512POV | THYRISTOR | 361 | 230 | 1200 | 500 | - | 150 | TO-93 | Redresseur interne | L |
| ST230S16PO | THYRISTOR | 361 | 230 | 1600 | 500 | - | 150 | TO-93 | Redresseur interne | L |
| 300RA20 | THYRISTOR | 470 | 300 | 200 | 500 | 120 | 150 | A-6 | Redresseur interne | N |
| ST300512PO | THYRISTOR | 470 | 300 | 1200 | 500 | 100 | 100 | TO-118 | Redresseur interne | M |
| ST303512PFKO * | THYRISTOR | 471 | 300 | 1200 | 500 | 25 | 200 | TO-118 | Redresseur interne | M |
| ST330S12PO | THYRISTOR | 520 | 330 | 1200 | 500 | 100 | 200 | TO-118 | Redresseur interne | M |
| ST330S16PO | THYRISTOR | 520 | 330 | 1600 | 500 | 100 | 200 | TO-118 | Redresseur interne | M |
| ST173C12CFK0 * | THYRISTOR | 610 | 330 | 1200 | 200 | 20 | 200 | TO-200AB | Redresseur interne | O |
| T35KEEA-1600 * | THYRISTOR | 640 | 400 | 1600 | - | 35 | 250 | A-29 | JEENDA | Q |
| ST230C16C1L | THYRISTOR | 780 | 410 | 1600 | 1000 | 100 | 150 | TO-200AB | Redresseur interne | O |
| T38KEE-1800 * | THYRISTOR | 800 | 500 | 1800 | - | 35 | 250 | TO-200AC | JEENDA | P |
| T40KEE-1800 * | THYRISTOR | 940 | 600 | 1800 | - | 35 | 300 | TO-200AC | JEENDA | P |
| S38BF12B * | THYRISTOR | 980 | 625 | 1200 | 700 | 20 | 150 | TO-200AC | Redresseur interne | P |
| ST303C12CFK0 * | THYRISTOR | 1180 | 620 | 1200 | 200 | 20 | 200 | TO-200AB | Redresseur interne | O |
| ST303C12CFJ1 * | THYRISTOR | 1180 | 620 | 1200 | 200 | 25 | 200 | TO-200AB | Redresseur interne | O |
| ST300C16C0 | THYRISTOR | 1290 | 650 | 1600 | 500 | 100 | 200 | TO-200AB | Redresseur interne | O |
| ST330C16C1L | THYRISTOR | 1420 | 720 | 1600 | 1000 | 100 | 200 | TO-200AB | Redresseur interne | O |
| T8261275B3DH * | THYRISTOR | 1524 | 970 | 1200 | 300 | 20 | 200 | TO-200AC | POWEREX | P |
| ST650C24L1 | THYRISTOR | 1557 | 790 | 2400 | 500 | 200 | 100 | TO-200AC | Redresseur interne | P |
| C712PM * | THYRISTOR | 1700 | 1000 | 1600 | 500 | 55 | 120 | A-24 | POWEREX | R |
| T50KEE-1800 * | THYRISTOR | 1700 | 1000 | 1800 | - | 35 | 500 | A-24 | JEENDA | R |
| ST700C16L0 | THYRISTOR | 1857 | 910 | 1600 | 500 | 150 | 200 | TO-200AC | Redresseur interne | P |
| ST700C20L0 | THYRISTOR | 1857 | 910 | 2000 | 500 | 150 | 200 | TO-200AC | Redresseur interne | P |
| ST730C16L1L | THYRISTOR | 2000 | 990 | 1600 | 1000 | 150 | 200 | TO-200AC | Redresseur interne | P |
| T9G0161203DH | THYRISTOR | 2790 | 1780 | 1600 | 300 | 350 | 200 | A-24 | POWEREX | R |
| ST1200C16K1L | THYRISTOR | 3080 | 1650 | 1600 | 500 | 200 | 200 | A-24 | Redresseur interne | R |
| ST1200C20K0 | THYRISTOR | 3080 | 1650 | 2000 | 500 | 200 | 200 | A-24 | Redresseur interne | R |
.jpg)
Dispositifs semi-conducteurs de puissance, composants de protection et solutions d'alimentation industrielles.
